Unitree H1

Unitree H1

Unitree's First Universal Humanoid Robot

Watch Video V1.0
Watch Video V2.0
Watch Video V3.0
Watch Video V4.0

  • Highest power performance in the world's approximate specifications

    The advanced powertrain provides the highest level of speed, power, maneuverability and flexibility.

  • The first full-size general-purpose humanoid robot that can run in China

    Possessing a stable gait and highly flexible movement capabilities, it is able to walk and run autonomously in complex terrains and environments.

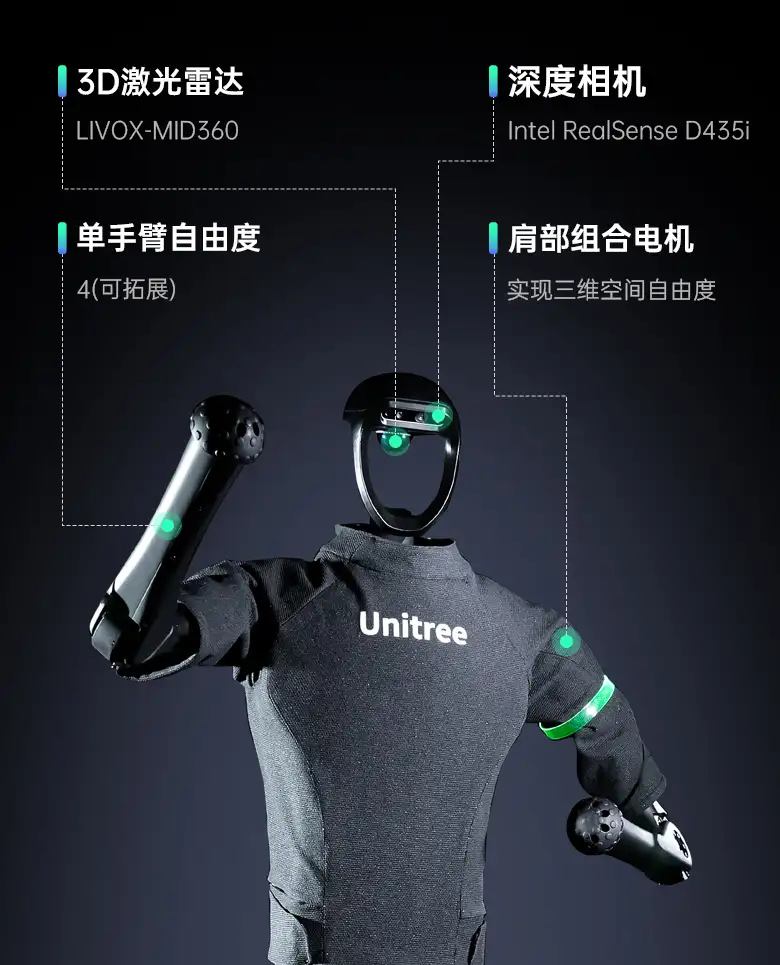

  • 360° depth perception

    Equipped with 3D LiDAR + depth camera, real-time acquisition of high-precision spatial data to achieve panoramic scanning.

Unitree H1

Full-size universal humanoid robot

  • Body Size Value

    height about 180CM

    weight about 47kg

  • Peak Torque Density

    189N.m/Kg

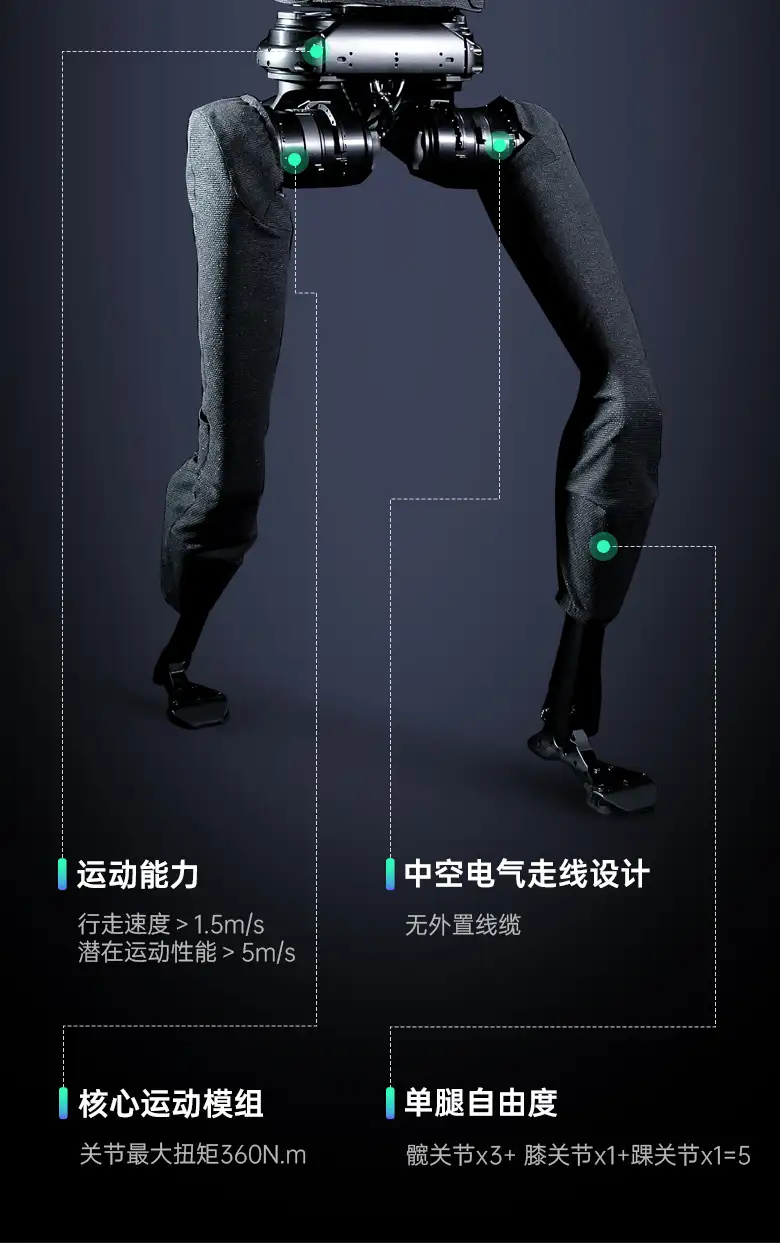

  • Mobility

    Moving speed of 3.3m/s

    ( world record )

    Potential mobility > 5m/s

  • Endurance

    Battery capacity: 864Wh,

    quickly replaceable

  • Maximum Joint Torque

    360N.m

  • 360° Depth Sensing

    3D LIDAR

    + Depth Camera

photographphotograph
Unitree M107 Joint Motor
Super powerful power performance, significantly improved in terms of agility,
speed, load capacity, endurance, and more

M107 PK International mainstream joint motor

  • Product

    M107
    T-1
    T-2

  • Maximum torque OR pulling force (3.5cm arm equivalent)

    360N.m
    10000N
    180N.m
    8000N

  • Weight

    1.9kg
    2.26kg
    2.2kg

  • Torque or Tension / Weight Ratio

    189
    5263
    79
    3636

  • Hollow shaft

    YES
    YES
    -

  • Dual Encoder

    YES
    YES
    YES

  • Dimensions(mm)

    107 × 74
    100 × 130
    60 × 180

Unitree H1 Parameter

    *Note: The product continues to iterate and optimize, please refer to the actual receipt of the goods prevail
