Go2 Battery

Go2 Battery

Fast Charging, Long Endurance

Provide Strong Power to Your Robots

High Performance, Long Endurance

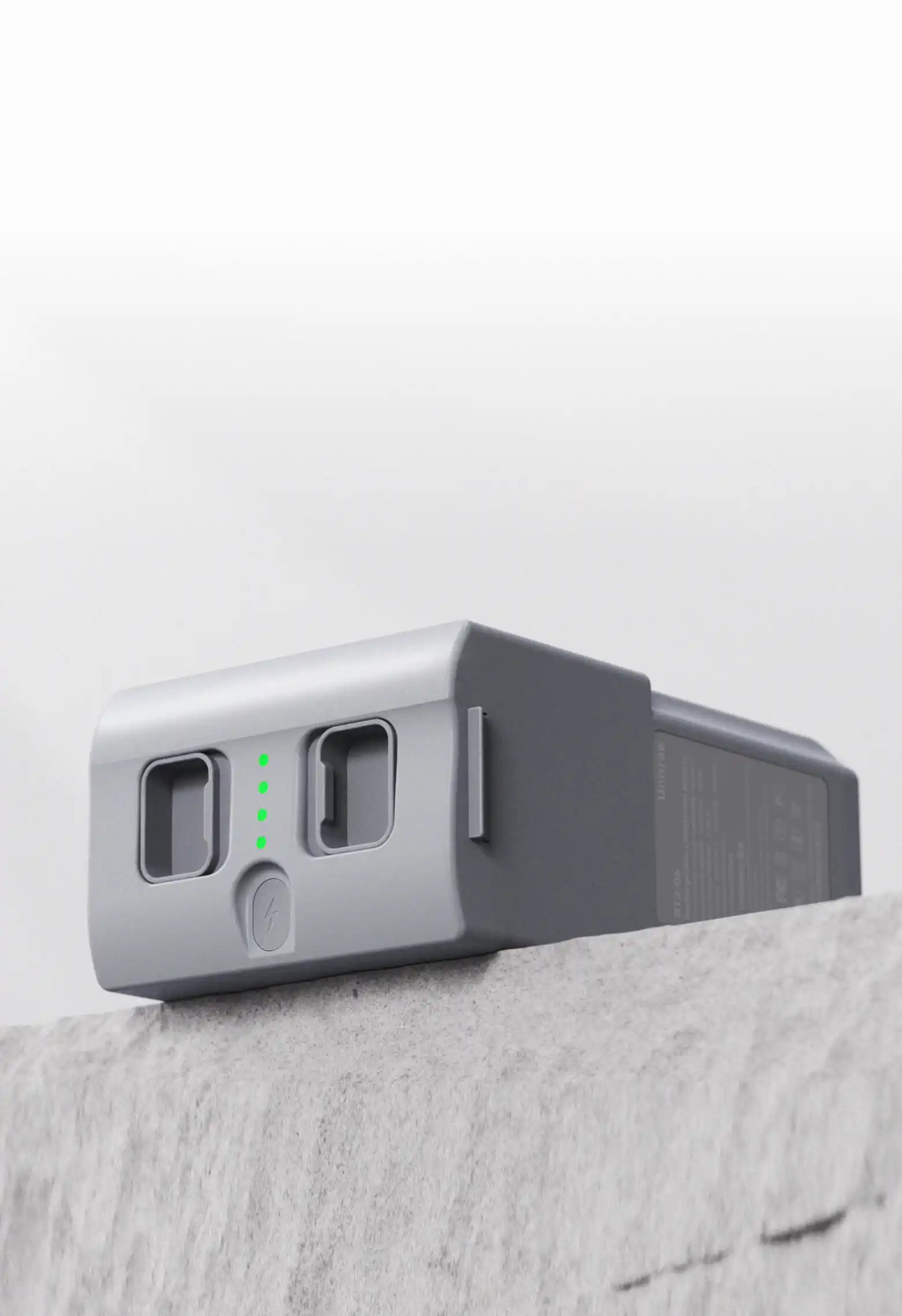

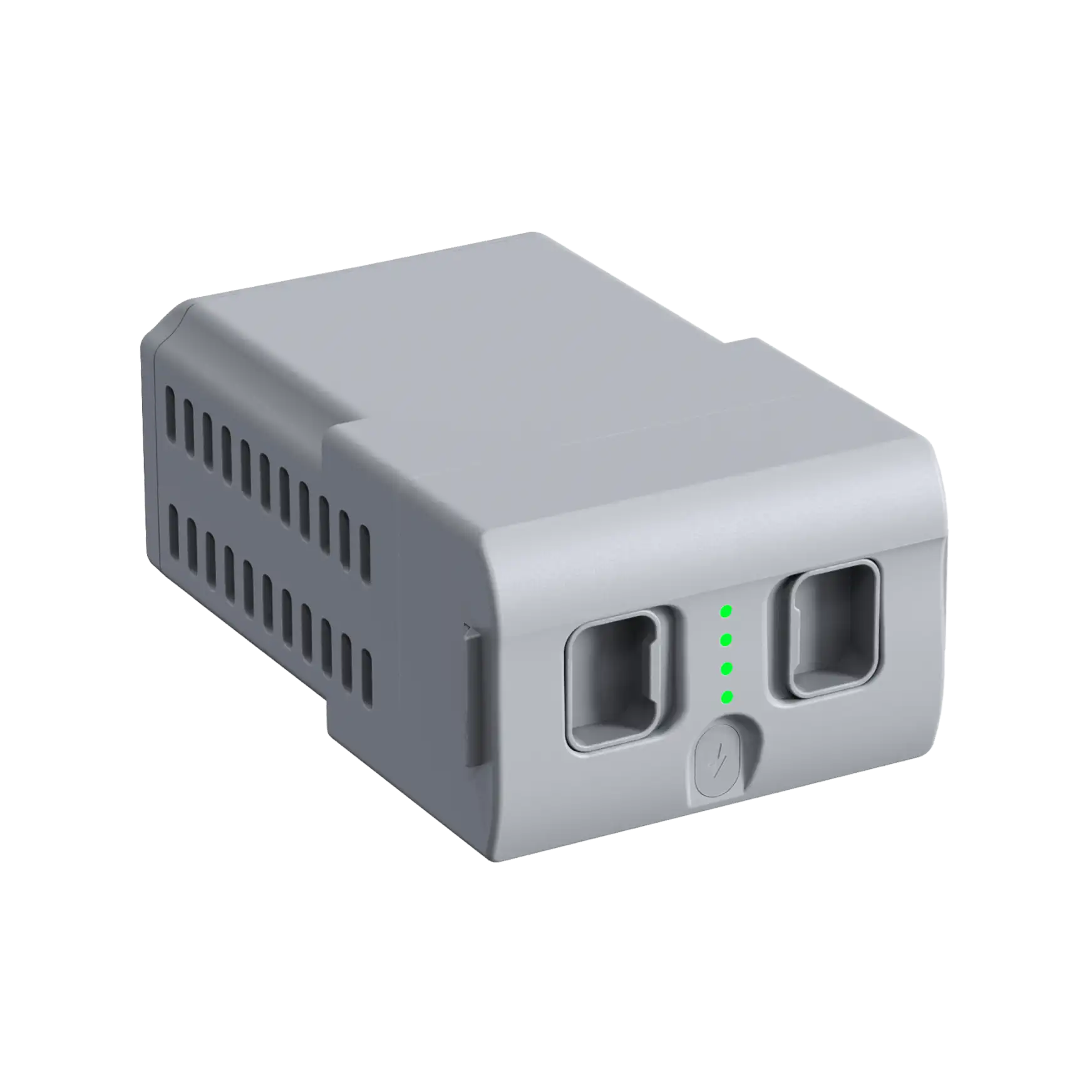

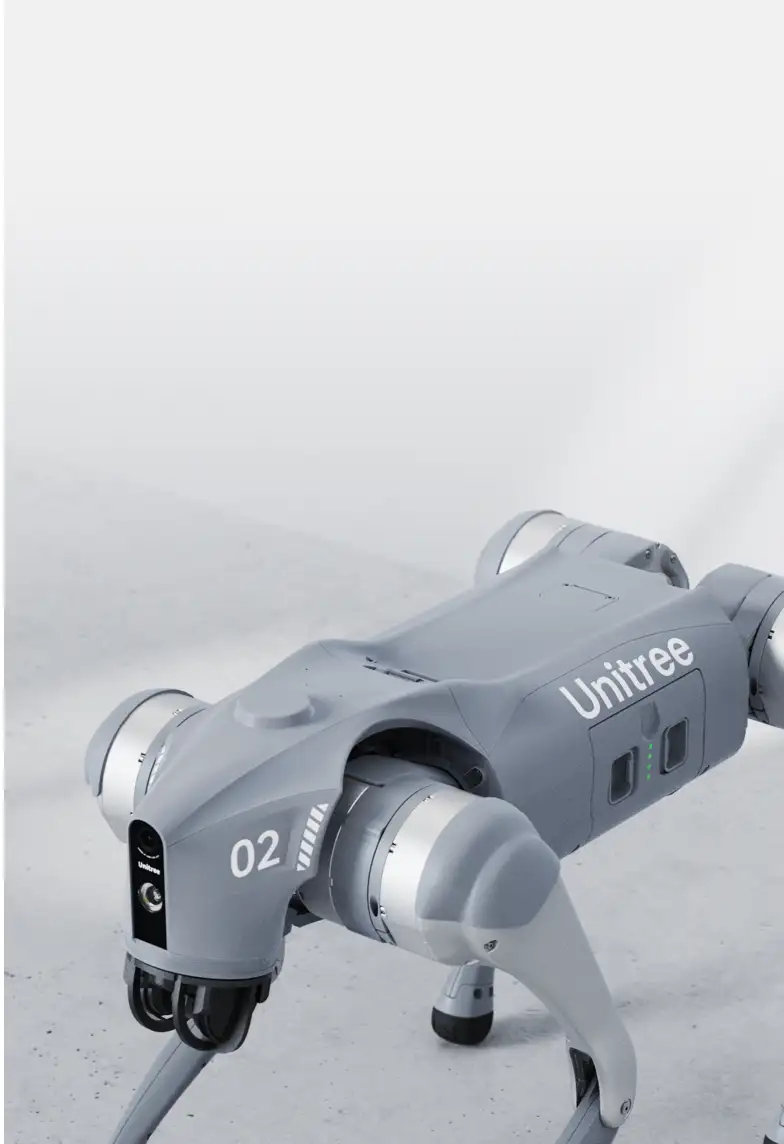

This battery uses high performance battery cell and the Unitree self-developed battery management system(BMS) to provide the strong power for Go 2 quadruped robot. The battery has 2 versions, BT2-05(the standard version) and BT2-06(the long endurance version).

Eight fold protection, safety guarantee

  • Battery storage and self-discharge protection
  • Balenced charge protection
  • Overcharge protection
  • Charging temperature protection
  • Charging current protection
  • Short circuit protection
  • Over discharge protection
  • Battery load detection protection

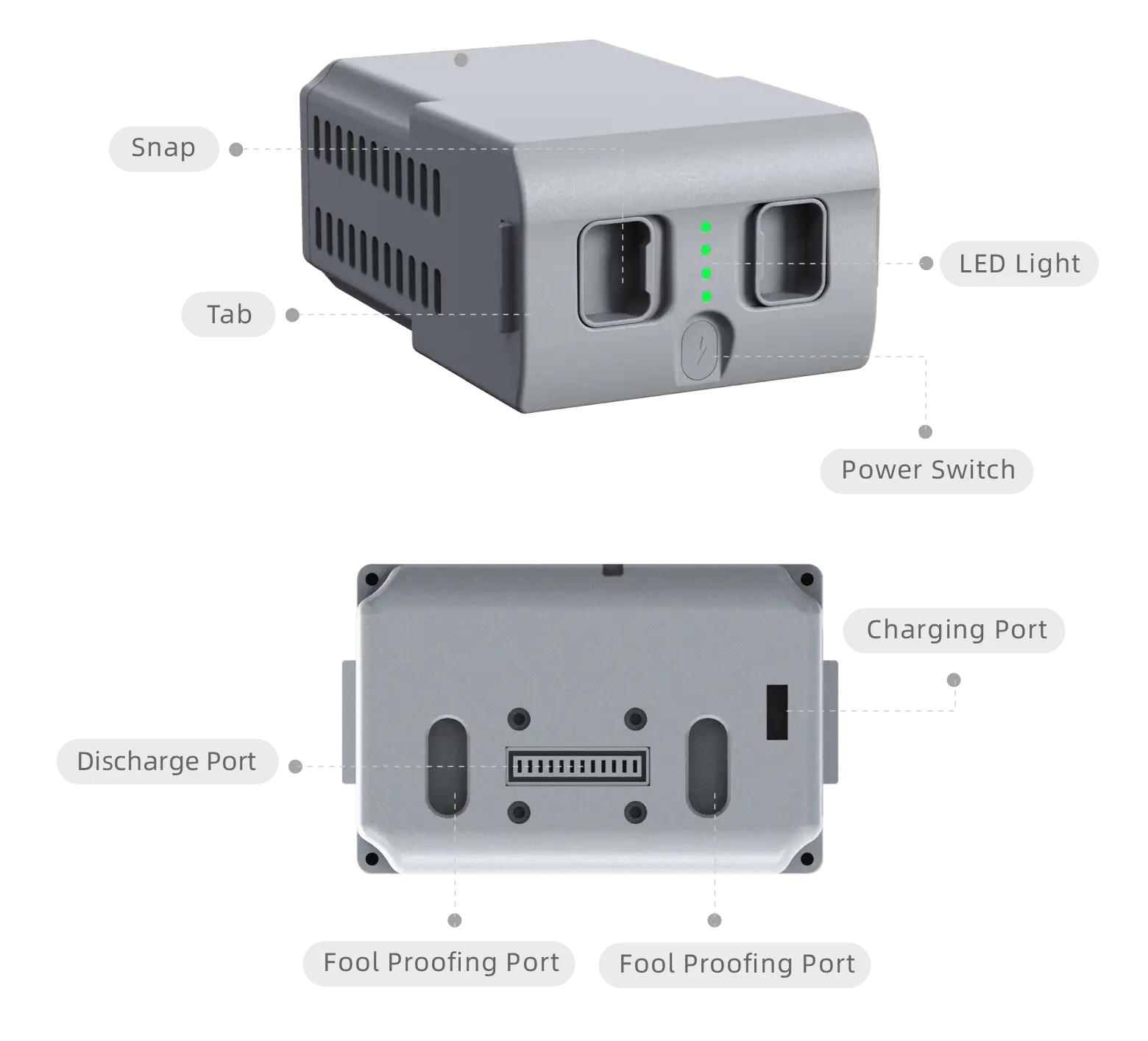

Battery Components List

Go2 Accessories List

Check the details of Go2 >

  • The High Computing Power Module

  • The Small Servo Arm

  • The Depth Camera D435i

  • The 3D Navigation Radar (HESAI XTi6)

  • The Charging Pile

  • The 3D Navigation Radar (MID-360)

  • Dual Cameras+Three in One

  • Food End

  • The Charger

  • The Battery

  • The Remote Control

  • The Tracking Module

Product Parameters

    • Rated Voltage

      DC 29.6V

    • Charge Limit Voltage

      DC 33.6V

    • Charging Current

      3.5A～9A

    • Rated Capacity

      8000mAh 236.8Wh

    • The Executive Standard

      IS 16046(Part 2)/IEC 62133-2

    • Size

      120mm * 80mm * 182mm

    * This product is a civilian robot. We kindly request that all users refrain from making any dangerous modifications or using the robot in a hazardous manner.

    * Please visit Unitree Robotics Website for more related terms and policies, and comply with local laws and regulations.
