Unitree B2

Go Beyond the Limits

Lead The Industry Application

Watch Video V1.0
Watch Video V2.0

  • Fastest running industrial-grade quadruped robot at

    6m/s [1]

  • All-rounded to Cope with A Variety of Environments

    Excellent terrain adaptability to ensure stable travel on slippery or uneven surfaces.

  • Climbing stairs as if they were flat.

    Excellent sustained stair climbing, effortlessly tackling steps.

    Remains extremely stable and balanced when climbing.

  • 170% increase in joint performance with 360 N.m of torque

    Extreme performance provids greater flexibility and stability for industrial operations.

  • Overcoming obstacles. Stable and tough.

    Superior obstacle-crossing ability, easy to cross the mess of wood piles, 40cm high platforms and other obstacles

  • 100% increase in sustained

    load 200% increase in endurance

    100% increase in continuous walking with load greater than 40kg; continuous walking with 20kg load can last for greater than 4 hours with over 15km mileage.

    200% increase in endurance; unloaded continuous walking endurance greater than 5 hours with more than 20km mileage

Wheeled and Legged Forms

Breaking Through Endurance Limitations

Innovative structural design of the B2 realizes switching between legged and wheeled forms (optional).

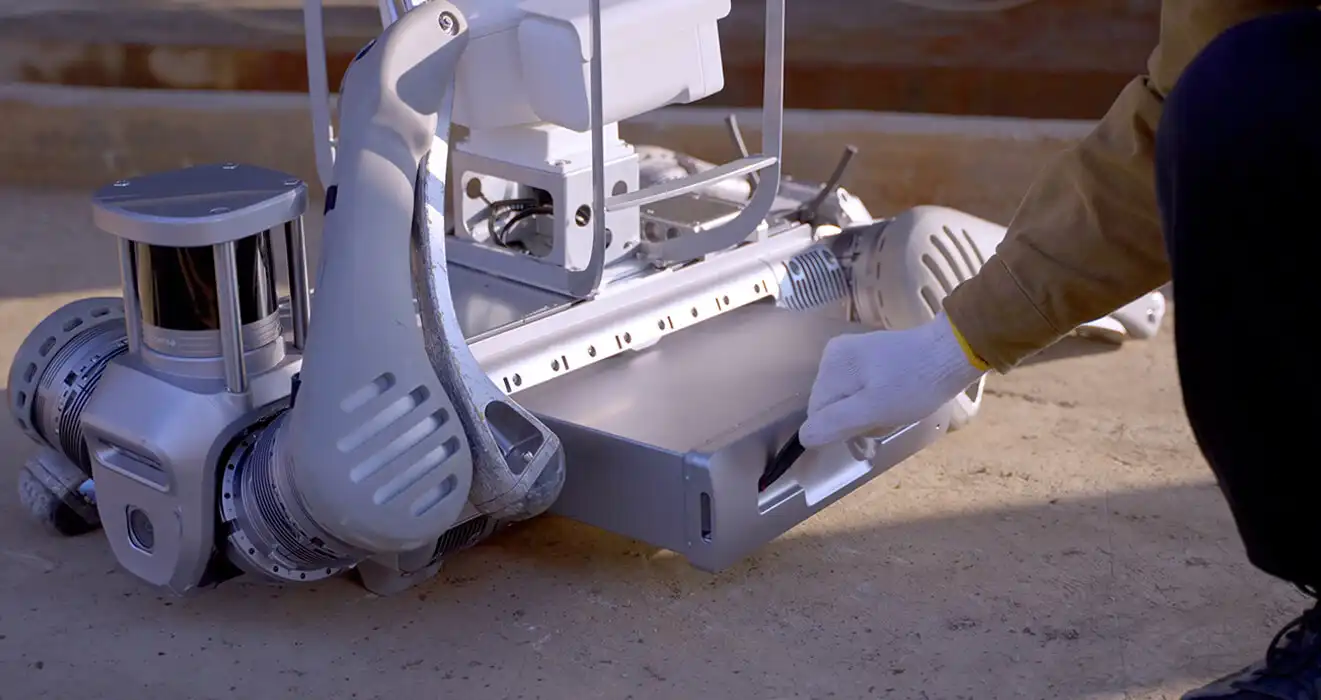

Plug-in Battery

Stable and Reliable Autonomous Charging

B2 battery supports quick change and also supports autonomous charging solutions(optional)，suitable for a wide range of solutions.

Unitree B2

Full-scene Adaptation, All-around Robot

  • Max Running Speed

    ＞6m/s [1]

  • Max Joint Torque

    About 360N.m

  • Longest Jump Distance

    ＞1.6m

  • Ultra Load

    Standing load: 120kg max.

    Continuous walking load >40kg

  • Max Walking Capacity

    Obstacle crossing: Max 40cm

    Slope angle > 45°

  • Ultra Long Endurance

    Continuous walking without load >5h

    20kg load continuous walking >4h

Unitree B2 The Ubiquitous All-around Assistant

Leading Industrial Intelligence in All Scenarios.

Intelligent Power Solutions Industry Application Leader

—— Power Inspection

Working on all-terrain like Long Stairs, Rock Piles, Steep Slopes, etc.

—— Emergency Rescue

Infrared Scanning 3DMapping Optimized Environmental Perception

—— Industrial Inspection

Unitree B2

Brand New Intelligent Species

The comprehensive performance in terms of load, range, motion capability and speed is two to three times that of existing quadruped robots worldwide!

    *[1]: realized in special configurations, in practice there is a speed limit for security purposes

    *Part of the function requires human operation or secondary development to realize, different configurations vary.

    *The above parameters may vary in different application scenarios and different configurations, please refer to the actual situation.
